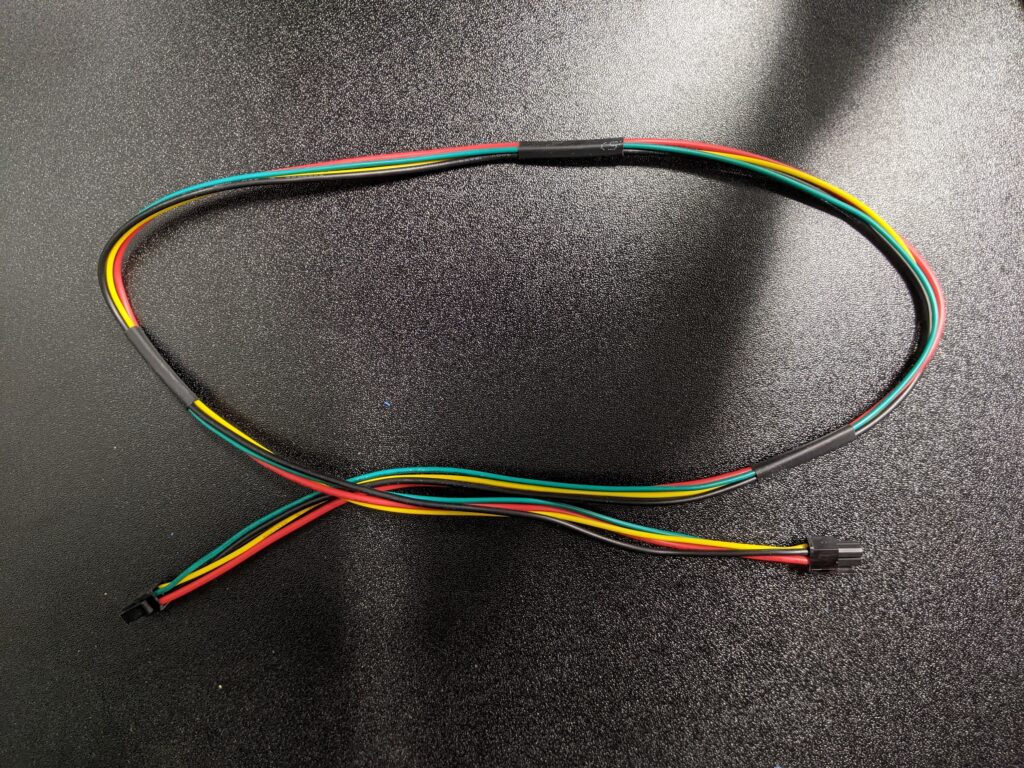

How to replace: [PT3694] Cable – Genesis Vest Hanger (800mm, 4way)

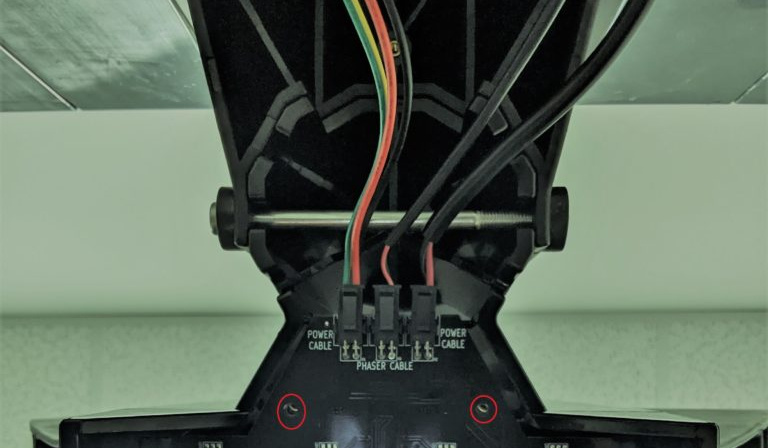

Locate the power cable from under the hanger. Unplug the first end of the connector from one hanger and then unplug from the next hanger.

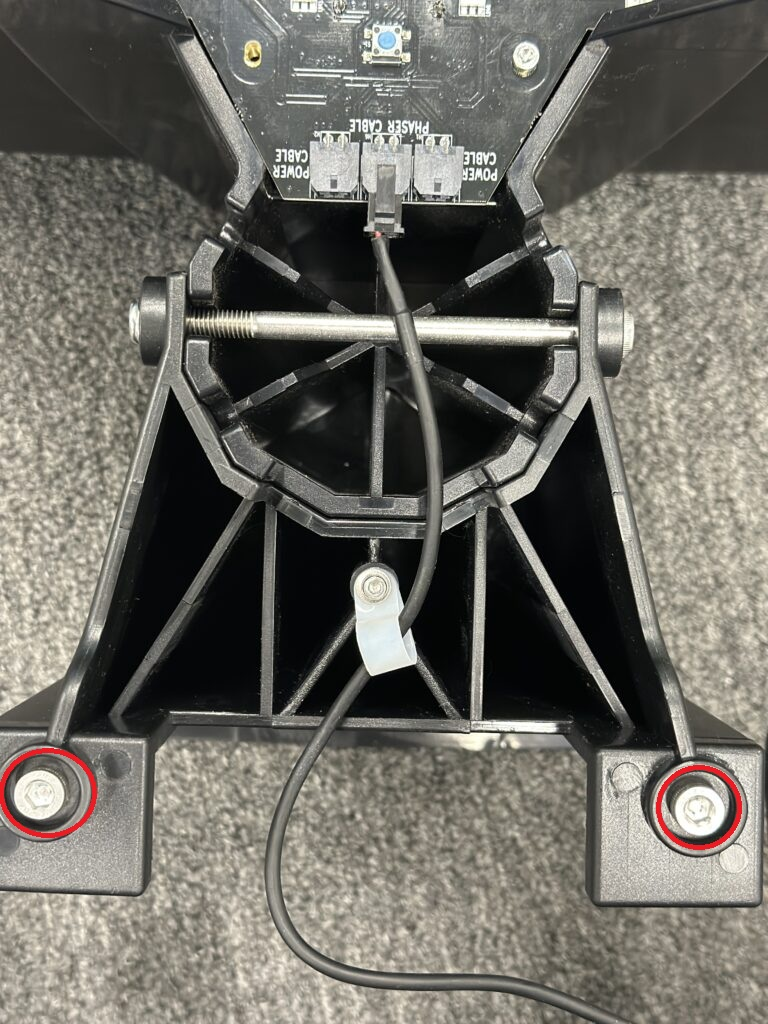

Once unplugged, unscrew the hanger set screws and remove the two hangers that the cable was plugged into. This will allow for easier access to run the new cable.

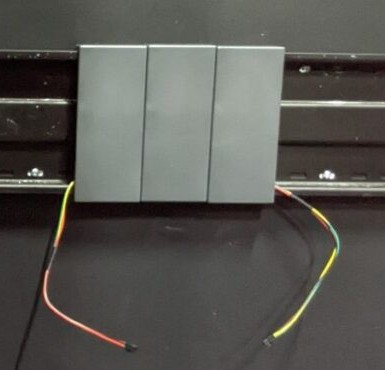

Next, pull the old cable out and run the new cable behind the spacers.

Place the hangre back onto the rail. Be sure not to pinch the wires when placing the hanger back on and tightening your set screws. Once done plug the cables back into the hanger board power slot.
